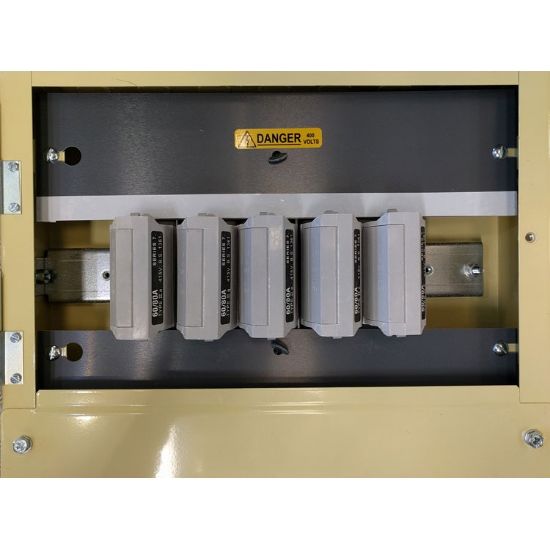

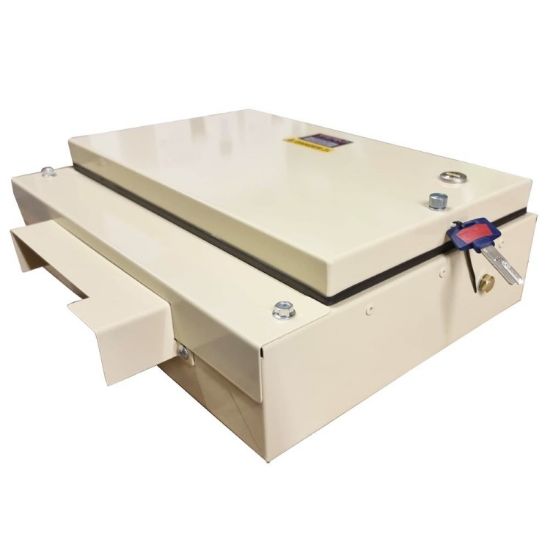

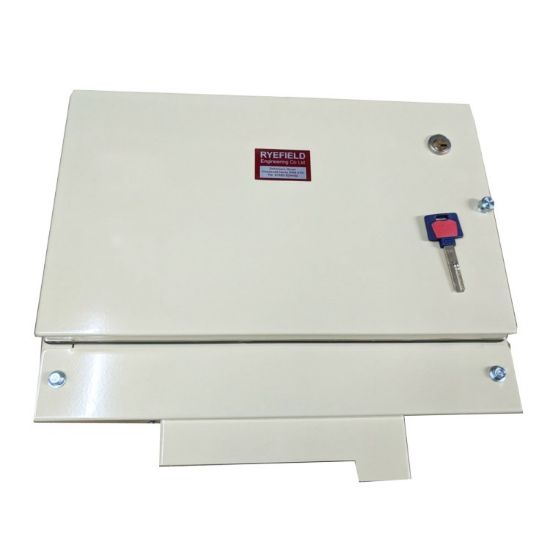

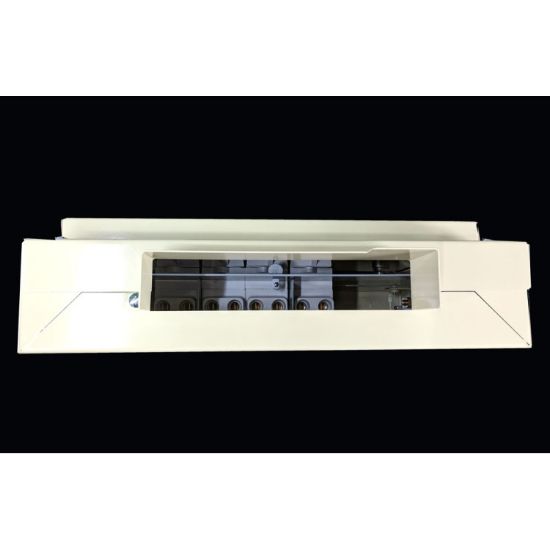

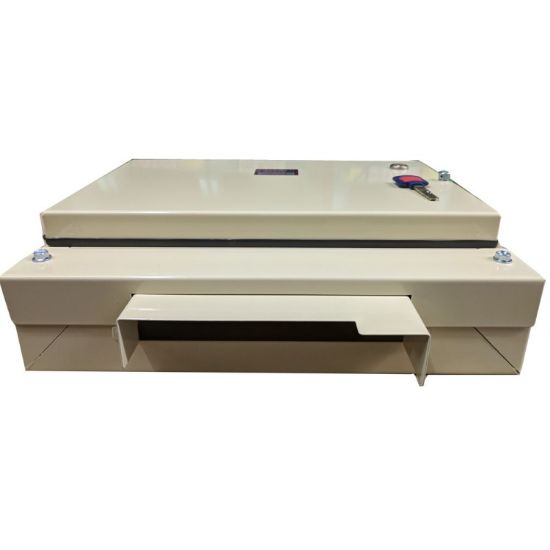

Ryefield 5-Way PME/SNE Service Head Distribution Board with 60A Fuse Units SHT1005/60

Product Code : SHT1005/60

1 in Stock

£819.72 INC VAT

Features:

  • Special compact unit designed to fit directly above a 24 Seven (LE) 100A 3-phase service head
  • Features a removable coupler fitted at the bottom for easy mounting
  • Provides 5 SPN outgoing circuit ways complete with 60A service fuse units

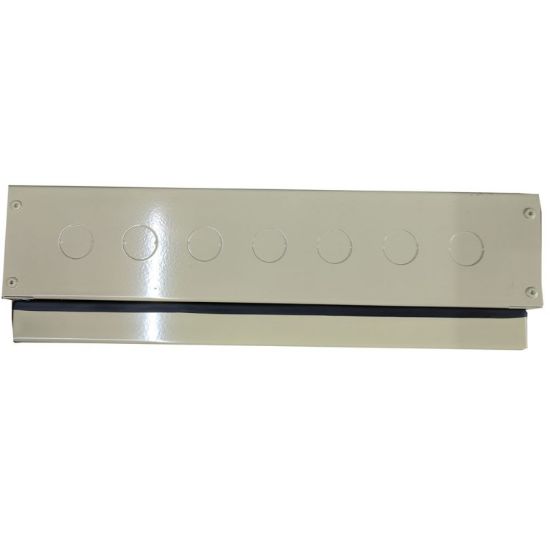

  • Fitted with 25mm knockouts in the top plate for each SPN outgoing circuit
  • Made of durable 18g steel sheet with the case back drilled and embossed for wall fixing
  • Includes standard main brass clamps accepting up to 35 mm² stranded conductors

Options : Click And Collect Only

Specifications

Amps60A
UnitsDomestic
Way5 Way
Length350mm
Width400mm
Depth120mm
MountingWall
RCD IncludedNo
ManufacturerRyefield Engineering
Compliance18th Edition Compliance
IP RatingIP2XC
RangeRyefield Distribution Boards
