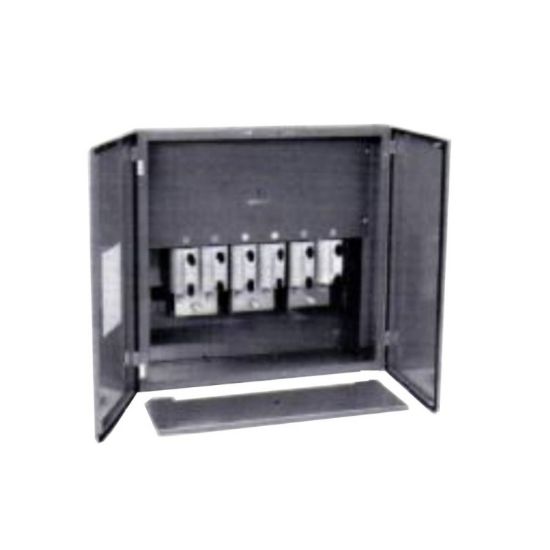

Ryefield 2-Way 200A J-Type TPN Distribution Board SK 3011/3

Product Code : SK 3011/3

0 in Stock

£4084.80 INC VAT

Features:

  • Wall-mounted case fabricated from 16g zinc-coated sheet steel
  • Hinged tray-pattern covers secured by captive thumbscrews
  • Mul-T-Lock system with provision for wire sealing and padlocking attachment
  • Copper busbars fitted with M16 studs for incoming connections
  • Fitted with 6 x Henley 58424-01 carriers for JP-type HRC fuse links and wedge-type bases
  • PVC inner insulating screen with apertures and inter-phase fillets for enhanced safety
  • Removable 16g flat steel plates on top and bottom slots; optional spreader boxes available for larger cables

Options : Click And Collect Only

Specifications

Amps200A
UnitsDomestic
IP RatingIP2XC
Way2 Way
Length680mm
Width680mm
Depth230mm
MountingWall
RCD IncludedNo
ManufacturerRyefield Engineering
RangeRyefield Distribution Boards
Compliance18th Edition Compliance
