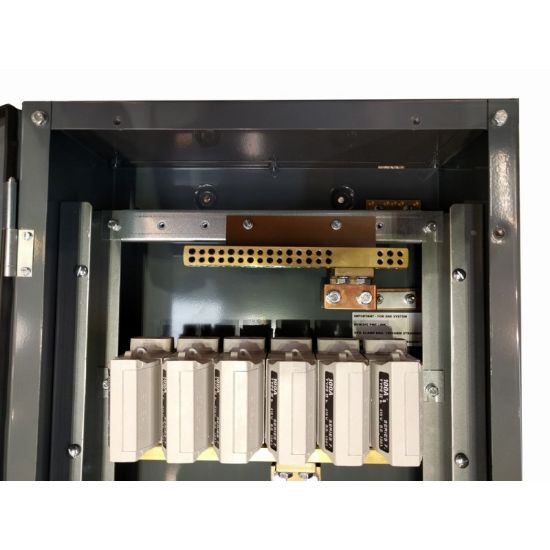

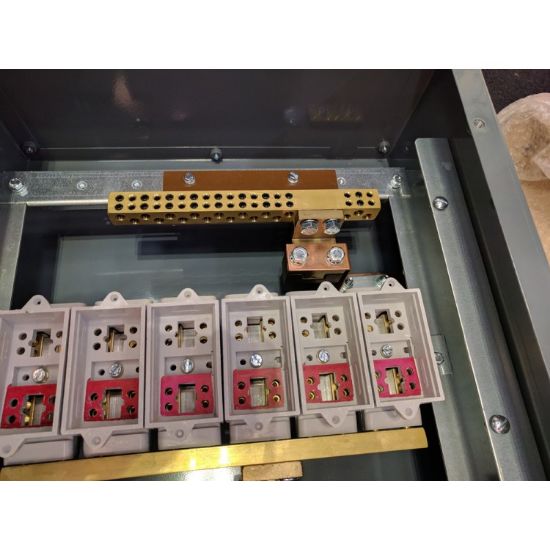

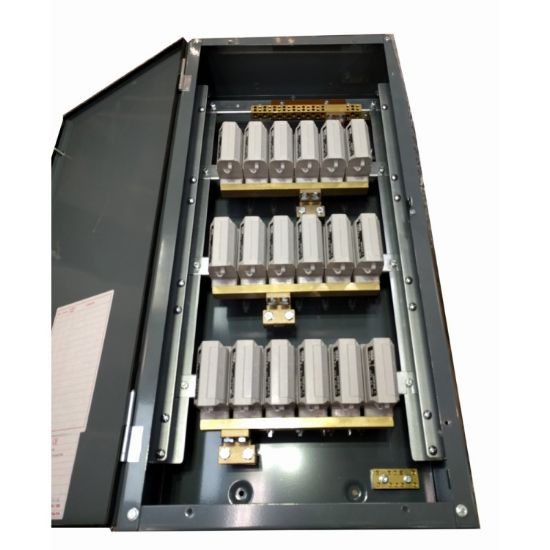

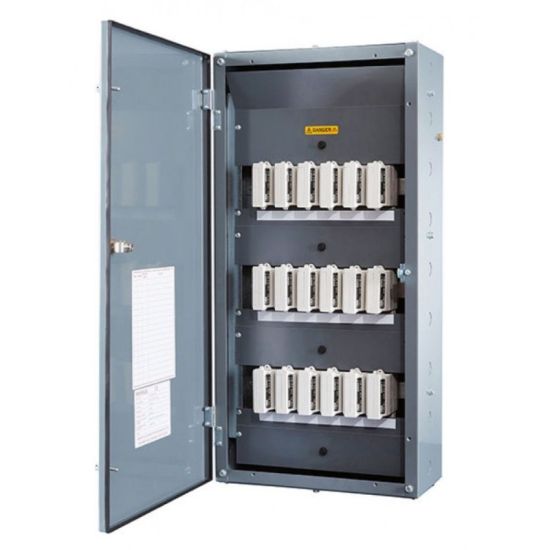

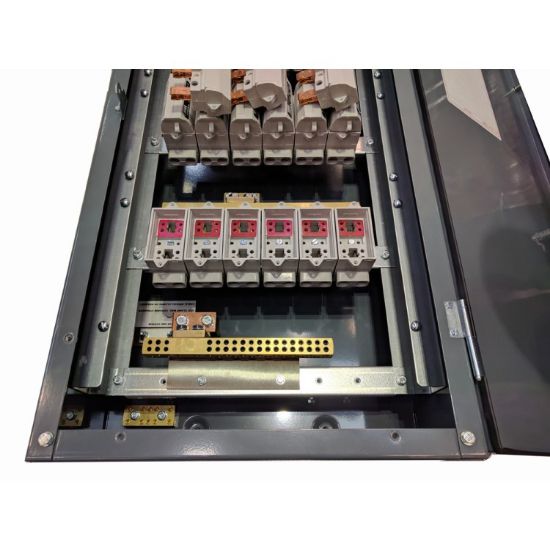

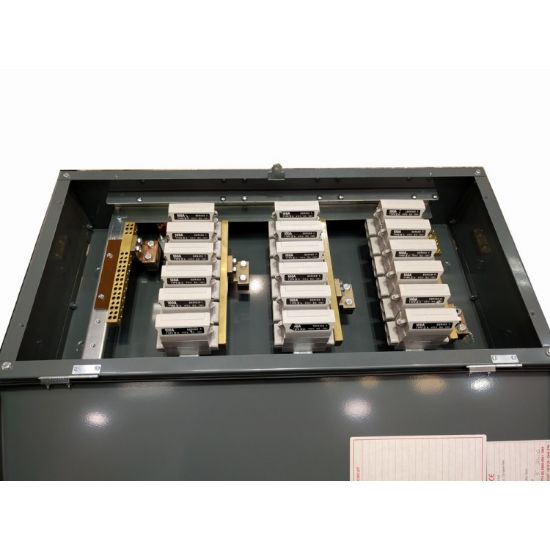

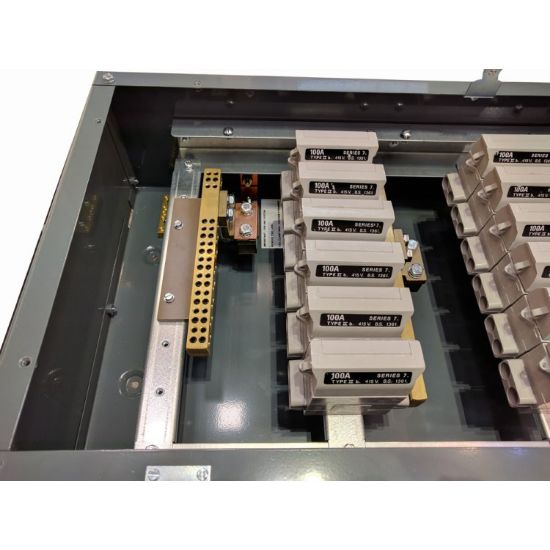

Ryefield 18-Way Vertical TPN Distribution Board with 100A Fuse Units TP18AVS 100

Product Code : TP18AVS 100 AMP

0 in Stock

£2547.48 INC VAT

Features:

  • DNO pre-approved distribution board ideal for multi-dwelling residential buildings (HMOs)
  • Retrofit surge-ready for 18th Edition compliance
  • Lift-off hinged cover equipped with padlocking attachment and Multilock security
  • Durable 18g steel sheet (1.2mm steel) vertical enclosure finished in dark grey powder coat

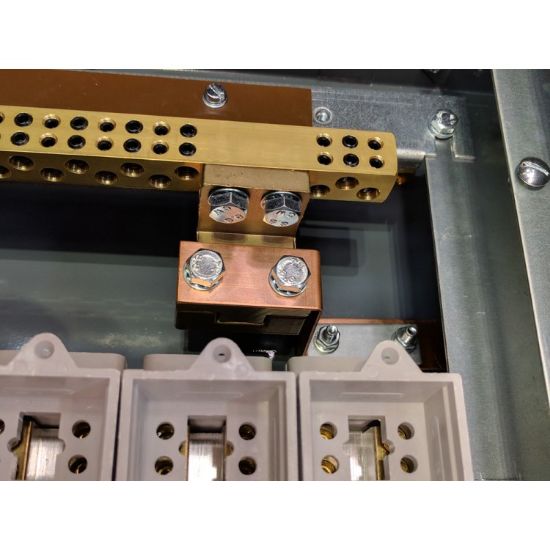

  • Standard 400A-rated busbar with adjustable main brass clamps accepting 25mm to 120mm stranded conductors
  • Includes brass earth block with pinching screw terminals and PME link
  • Back of case drilled and embossed for convenient wall mounting

Options : Click And Collect Only

Specifications

Amps100A
UnitsDomestic
Way18 Way
IP RatingIP2XC
Length815mm
Width400mm
Depth180mm
MountingWall
Compliance18th Edition Compliance
RCD IncludedNo
ManufacturerRyefield Engineering
RangeRyefield Distribution Boards
