TP15AVS 60 AMP
TP15AVS 60 AMP

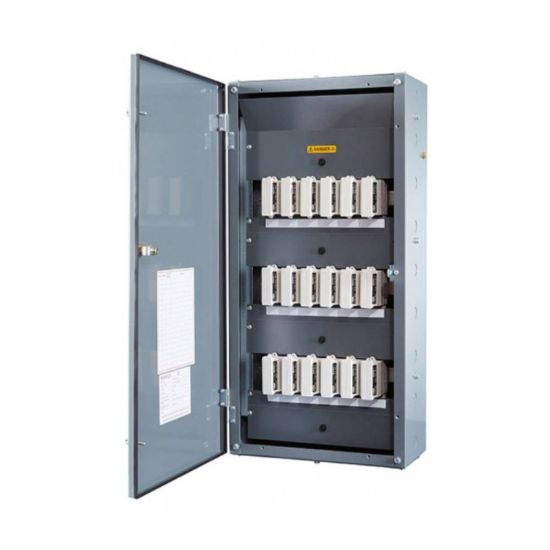

Ryefield 15-Way Vertical TPN Distribution Board with 60A Fuse Units TP15AVS 60

Product Code : TP15AVS 60 AMP

0 in Stock

£2398.44 INC VAT

Features:

  • DNO pre-approved distribution board ideal for multi-dwelling residential buildings (HMOs)
  • Retrofit surge-ready for 18th Edition compliance
  • Lift-off hinged cover equipped with padlocking attachment and Multilock security
  • Durable 18g steel sheet (1.2mm steel) vertical enclosure finished in dark grey powder coat
  • Standard 400A-rated busbar with adjustable main brass clamps accepting 25mm to 120mm stranded conductors
  • Includes brass earth block with pinching screw terminals and PME link
  • Back of case drilled and embossed for convenient wall mounting

Options : Click And Collect Only

Specifications

Amps60A
UnitsDomestic
Way15
IP RatingIP2XC
Length815mm
Width400mm
Depth180mm
MountingWall
Compliance18th Edition Compliance
ManufacturerRyefield Engineering
RangeRyefield Distribution Boards
RCD IncludedNo
