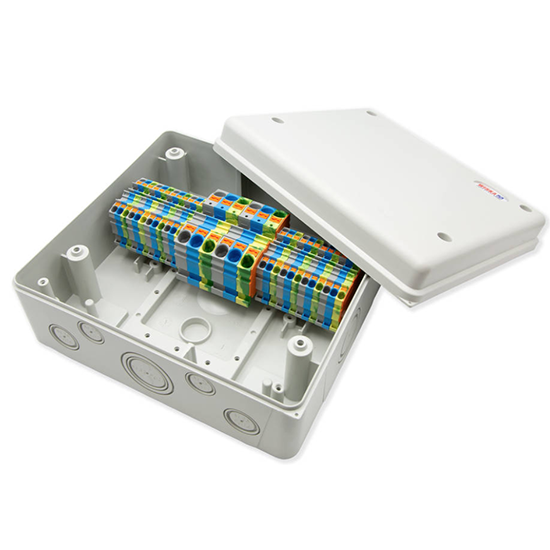

CUR818 Plastic Consumer Unit Relocation Kit

Product Code : 10111773

1 in Stock

£85.12 INC VAT

Features:

  • Suitable for relocating up to 10 ways
  • Fast self-tapping stainless screws
  • Terminals:
  • 2202-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 4mm (x8)
  • 2202-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 4mm (x8)
  • 2202-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push0in up to 4mm (x8)
  • 2002-1292 - Orange Endplate for 2202 (x1)
  • 2210-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 16mm (x2)
  • 2210-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 16mm (x2)
  • 2210-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 16mm (x2)
  • 2010-1292 - Orange Endplate for 2210 (x1)

Specifications

MaterialPolycarbonate
IP RatingIP65
Temperature RangeMax. 85 °C
Temperature RangeMax. 85 °C
Glow Wire Test650 °C
Impact Protection CodeIK08
DimensionsExternal (LxWxH): 215x200x95mm
TypeCUR 818
ColourRAL 7035
